Barton High Load Eyes

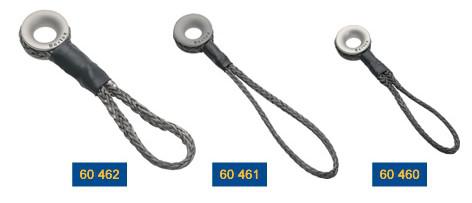

High Load Eye with Dyneema Loop

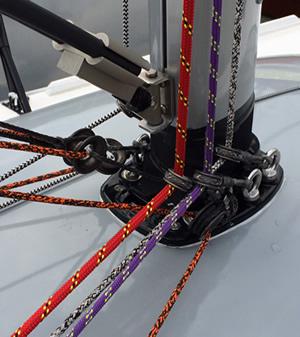

The Barton High load eye with loop is available in 3 sizes and can be used in various applications on board including barber hauler, preventers, mast base block tidies, emergency blocks, occasional blocks and toe rail blocks etc.
The High load eye combined with the Dyneema loop gives you a fast, efficient, simple and extremely strong solution to changing the direction of any line. The ‘Spectro’ anodised aluminium eye is designed to have very good wear resistant properties with low friction, this combined with the Dyneema loop gives you exceptional low weight to very high performance load ratio.

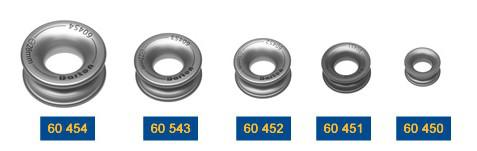

High Load Eyes
Available in 5 sizes. Manufactured in marine grade aluminium and finished in our unique hard ‘Spectro’ grey anodising. These lightweight high load eyes are suitable for a variety of uses on board, from lazy jacks, barber haulers, mast base tidies to stanchion lead eyes. The smallest size can be attached using a 3mm line with a bullseye diameter of 6mm. The largest size can be attached using a 16mm line with a bullseye diameter of 28mm.
| Part No. | External Ø mm | Internal Rope Ø mm | Bore Dia Ø mm | Length mm | SWL Kg | Weight g | |
|---|---|---|---|---|---|---|---|
| High Load Eye with Dyneema Loop |  |  |  |  |  |  | |
| High load eye with Dyneema loop – 12mm | 60 460 | – | – | 12 | 100 | 750 | 11 |
| High load eye with Dyneema loop – 22mm | 60 461 | – | – | 22 | 230 | 2400 | 91 |
| High load eye with Dyneema loop – 28mm | 60 462 | – | – | 28 | 310 | 3600 | 152 |
| High Load Eye | |||||||
| High load eye – 12mm | 60 450 | 12 | 3 | 6 | – | 300 | 0.8 |
| High load eye – 26mm | 60 451 | 26 | 6 | 12 | – | 800 | 5.0 |
| High load eye – 38mm | 60 452 | 38 | 10 | 16 | – | 1800 | 24.0 |
High load eye – 52mm | 60 453 | 52 | 12 | 22 | – | 3300 | 52.0 |
| High load eye – 65mm | 60 454 | 65 | 16 | 28 | – | 4500 | 104.0 |
 |  |  |  |
Wear resistance
Independent laboratory tested Using Marlow D2 Dymeena 12 strand line.
After 450,000 cycles (50,000 metres of line), over 300 hours on an abrasion test machine – no visual signs of wear on the anodised coating could be found.
